What Causes a Cracked Cylinder Head?

Sep. 21, 2020

A casting cylinder head is the "top end" of the engine. It companions to the engine block to seal the burning chamber, which is where the engine burns fuel to make power.

Cylinder heads also house the valves that direct airflow. Intake valves draw in the fresh air, burning happens, after that exhaust valves allow the scorched air gas blend to exit the burning chamber. An interior combustion engine is basically simply a fancy air pump.

Under severe conditions, a cylinder head can really split. A broken cylinder head may yield comparable signs to a blown head gasket or a fractured block, but is more pricey to deal with than a blown head gasket. The solution is normally to get a brand-new cylinder head.

What Triggers a Cracked Cylinder Head?

1) Getting too hot.

Internal burning engines heat up extremely promptly. As the name indicates, they are created to contain tiny, controlled explosions.

Much of the power in the combustion process is actually shed to thermal energy, as opposed to being exchanged kinetic energy to power the vehicle. This is a by-product of their layout that can be reduced, but never ever gotten rid of entirely.

The number one root cause of a split cylinder head is overheating. When an engine overheats, its parts may be worried much beyond the warmth limit it was made to hold up against.

Because the majority of heads are constructed of lightweight aluminum, they may warp or crack when the engine fumes sufficient.

An engine may get too hot for a number of reasons, the majority of which are because of a stopped working part in the cooling system. Some feasible reasons are laid out listed below.

2) Air in the Cooling System.

The air in the air conditioning system might allow hot spots to develop, where one part of the engine is much hotter than the part determined by the temperature sensor. This takes place since air can not transfer heat as successfully as a liquid can.

If air is caught in one spot far from the coolant temperature sensing unit, the temperature level sensing unit might not pick up the hot spot. You might not know your auto is running warm until the damage is already done.

Additionally, air leakage in the cooling system might minimize the pressure in the cooling system. Fluid coolant is more likely to boil at reduced pressure.

3) Fell Short Water Pump.

If the water pump stops working, the coolant will not have the ability to distribute through the engine appropriately. The coolant in the radiator might behave as well as chilly, but the coolant bordering the water jackets in the head and block will certainly be extremely warm.

Without a pump, coolant will only have the ability to circulate using the natural convection process, which is a lot too slow to remove excess heat before the engine gets too hot.

4) Fell Short Thermostat.

Combustion engines are most efficient when they are running at the operating temperature level they were created for.

An engine's normal operating temperature is still plenty warm enough to scald you-- normally around 190 to 210 degrees Fahrenheit (85 to 99 degrees Celsius). Running the engine below this temperature boosts gas usage, discharges, and use.

A thermostat blocks off coolant from the radiator until the coolant in the engine reaches the target temperature. As soon as the target temperature level is reached, the thermostat opens up to enable coolant at ambient temperature to go into the engine, cooling it until the thermostat is chilly enough to shut. The cycle proceeds as the engine runs.

If the thermostat is stuck open, your automobile will most likely run rather chilly. This is due to the fact that the coolant from the entire system is cycling with the radiator 100% of the time as well as rarely gets an opportunity to completely warm up.

If the thermostat is stuck closed, your engine will certainly overheat pretty conveniently. The warm coolant has nowhere to visit cool down. In a pinch, some engines enable you to use the heating unit as a tiny radiator.

The performance of this approach depends upon the dimension of the heater core and also how the cooling system is transmitted.

4) Coolant Leak.

If way too much coolant leaks out, at some point you won't have enough to correctly cool down the engine. You can lose a good amount of coolant before overheating, but it's a great idea to frequently inspect the overflow storage tank and radiator to make certain you're complimented.

If you discover a coolant leak, it's an excellent concept to examine your radiator cap. It's a low-cost part with some serious repercussions if it fails.

Warning: The radiator of a warm engine is under pressure. Do not open the radiator cap on a warm engine!

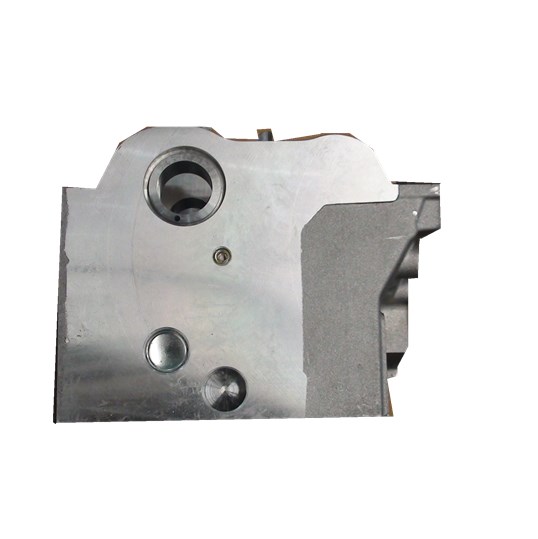

Casting Cylinder Head

Casting Cylinder Head

Cracked Custom Cylinder Head Effects.

A minor fracture in the cylinder head may go undetected for a long time, however, the signs and symptoms will be pretty obvious in severe cases. Below are five common symptoms to watch out for in case this takes place.

1) Oil Leak.

A cylinder head consists of oil in it. If you head, you can anticipate oil to leakage out of it. You need to discover the oil light on your control panel activating when this occurs showing a reduced oil pressure.

If you see this light on, open your hood as well as try to see if there's engine oil near the cylinder head.

Often oil will leak inside. When this occurs, you won't see a puddle of oil, yet may see blue smoke out the exhaust.

2) Coolant Leak.

Although a coolant leak can cause a broken head, it is also a sign and symptom. If the cylinder head is seriously split, then you'll probably have coolant dripping out of it along with oil.

This will cause your engine to get too hot, which your vehicle will certainly alert you about on your control panel. Sometimes coolant leaks are internal. Inner leakages might leakage right into the oil flows or the burning chamber.

In any case, check your coolant level and also do not continue to drive when you have a noticeable coolant leak or notice the coolant degree quickly dropping over time.

3) Poor Engine Efficiency.

The very first signs and symptom you may experience is a noticeable loss in engine power. If the cylinder head , that indicates pressed air is getting away from the combustion chamber.

You will discover the engine running a great deal slower or awkwardly when this happens.

4) Smoke From Engine.

white smoke from the exhaust.

Although this is unusual, big cracks in the cylindrical tube heads will certainly allow coolant to leak into the combustion chamber and also trigger white smoke to come from the engine.

Furthermore, leaking oil can reach warm engine components to produce this smoke. This is plainly an indicator that a broken cylinder head may be at fault.

5) Engine Misfire.

engine misfire causes.

This relates to number three. If the broken cylinder head is serious, then the mix in the combustion chamber will certainly create a misfire. This suggests the blend will not shed as it should.

Either that or your engine will simply pass away as you're driving and you will certainly have to continuously begin it back up.
